Polarization cameras offer a new approach to optical inspection by providing light-based information about material properties and surface structure. This technology reveals optical flaws and enables optimized process control, especially in applications involving challenging optical materials. At DIOPTIC, we develop and integrate polarization camera systems tailored precisely to the specific requirements of our clients.
Functionality and Technical Characteristics

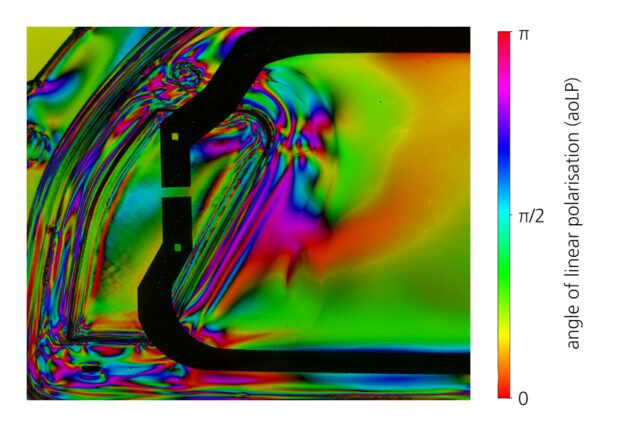

Unlike traditional cameras that only measure light intensity and color, polarization cameras capture both the direction and degree of light polarization. These cameras are increasingly utilized in industries such as semiconductor manufacturing, materials science, automotive, aerospace, and quality control. They are particularly suited for applications like deformation testing and the detection of optical defects or stresses, such as those found in films and other thin materials. In optical inspection, polarization cameras detect minute imperfections and distortions that indicate stress or manufacturing faults.
Versatile Applications of Polarization Cameras in Industry and Research

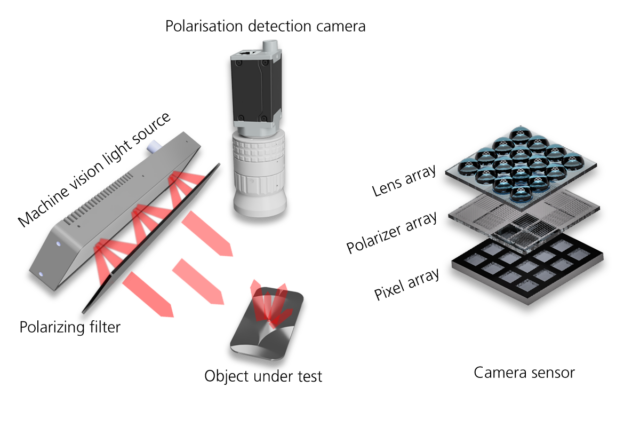

Polarization cameras are used, for example, to check films for damage by detecting differences in the degree of polarization. These differences can indicate scratches, cracks or material fatigue. In order to carry out precise measurements, the incident light must first be polarized by a polarization film. The cameras are equipped with special sensors that consist of several layers: a microlens array, polarization filter array and finally the image sensor (pixel array).
Another application example is the differentiation of materials based on their reflection. For example, metal can be differentiated from materials such as paper or textiles. Polarization cameras detect the reflected, polarized light of metallic particles, which differs significantly from the polarization behavior of paper or textiles.
In this way, the camera enables precise identification and localization of metal strips within the material, a crucial capability for quality control and product safety.
Customized Solutions for Specific Requirements
Since the requirements for polarization cameras vary by application field, we offer customized solutions for each use case. Our team at DIOPTIC develops and integrates polarization camera systems that are optimally aligned with your needs, whether in quality assurance, material analysis, or research. By combining optical precision with innovative camera technology, we create systems that not only provide deeper material insights but also enhance efficiency and accuracy in analysis.
